Example Bandstop Graphs:
UHF ch. 62 and Pager Band
Graph 1: UHF Ch. 62 Bandstop
Model CR7-ch.62U-20
- Bandstop attenuates ch. 62 by 20 dB to prevent signal overload of preamplifier
- Low impact on ch.62 picture quality, and low loss on chs 60 snd 64 (Mkr 3 & 4)
- Passband (not shown): 5 to 900 MHz, loss: < 1 dB loss ± .5 dB ripple
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 759.250 | -21.030 | 62 pix |
| 2 | 763.750 | -21.667 | 62 snd |
| 3 | 751.750 | -2.353 | 60 snd |
| 4 | 771.250 | -2.025 | 64 pix |
Pix = Picture, Snd = Sound
Order Info:
Model: CR7-Ch.(#) U (#dB) indoor, (CR7X outdoor)
Specify Channel (#) ( 2 to 13, FM band, 14 to 69 UHF)
Specify "U" for 40-860 MHz bandwidth
Specify Attenuation: - 20dB or -30 dB - (custom attenuation - inquire)
Example: CR7-ch.62U-20

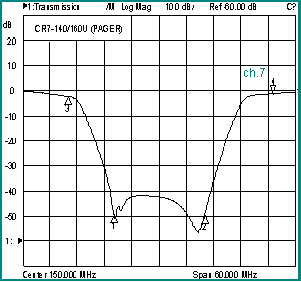

Graph 2: MATV Pager Frequency Bandstop
Model CR7-ch. 140/160U
- Attenuates off-air paging frequencies from 140 to 160 MHz
- Rejection: > 40 dB
- Low impact on TV channel 7 and FM band
- Passband (not shown) 5 to 220 MHz, and 470 to 860 MHz ( "diplexed" UHF)
- Passband loss <1 dB, ripple ± 1dB
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 140.000 | -49.160 | - |
| 2 | 160.000 | -49.657 | - |
| 3 | 130.000 | -2.503 | - |
| 4 | 175.000 | -1.376 | 7 |
Pix = Picture, Snd = Sound
Order Info:
Ask for model: CR7-140/160 (U) indoor ,or CR7X-140/160 (U) outdoor
Specify "U" for 470 to 860 MHz passing
* Custom stopband frequencies available - inquire
