Model HP7E Highpass: Example Graphs \ Specs \ Table

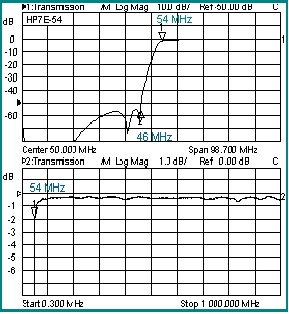

Graph 1: HP7E 46/54 (1GHz)

Passband: from 54 to 1000 MHz
Passband loss: <1 dB
Blocks power, Sub-TV, AM & CB bands
Stopband: 0 to 46 MHz, > 50 dB

Graph 2: HP7E ch.80/86

Passband: channel 86 and above
Stopband: channel 80 and below.
Application: use at modulator output to block spurious from affecting
ch80 and below

Example Highpass Eliminators

Model Number HP7E- Fs/Fc	Stopband (MHz)*	Cut Off (Fc) Loss	Passband (MHz) *	General Specifications
HP7E-42/50	0 to 42	< 2.0 dB	50 to 1000	Passband Loss: 1.0 dB
HP7E-46/54	0 to 46	< 2.0 dB	54 to 750	Flatness: +/-.5 dB
HP7E-ch.4/5	0 to 72	< 4.5 dB	77 to 750	Stopband Attn: > 50 dB
HP7E-ch.13/25	0 to 216	< 3.5 dB	228 to 750	Return Loss: 12 dB typ
HP7E-ch.36/39	0 to 300	< 3.5 dB	312 to 750	Weight: 8 oz
HP7E-ch.44/48	0 to 348	< 3.5 dB	366 to 750	Power pass: 1A max
HP7E-ch.56/60	0 to 420	< 4.0 dB	438 to 750	Connectors: F-type (F/F)
HP7E-ch.60/65	0 to 444	< 4.0 dB	468 to 750	Impedance: 75 ohms
HP7E-ch.70/75	0 to 504	< 4.0 dB	528 to 1000
HP7E-ch.80/86	0 to 564	< 4.0 dB	594 to 1000

* Passband insertion loss is 1 dB (except cutoff knee), and Stopband is > 55dB.

Order Info:

Order as: HP7E- ch.( Fc / Fs ) ... see "Calculating transition" example below *
Specify: Fc (cut off channel/frequency ) and/or Fs (stopband channel/frequency)
Example: HP7E-ch.80/86 ( HP7E-564/594 )

Calculating Transition for example Highpass ( HP7E-ch.80/86 )

Example 1: Highpass must pass from Fc (594 MHz = ch.86), where does stopband (Fs) begin ? *
From Fig.1: Fs = Fc x .95 (5% transition)
Given Fc = 594 MHz (ch.86), then, Fs = 594 x .95 = 564 MHz (ch.80).
* click Freq. Chart for channel frequencies

Example 2: Highpass stopband required at Fs (564 MHz = ch.80), where is passband cut off (Fc) ? *
From Fig.1: Fc = Fs x 1.05 (5% transition)
Given Fs = 564 MHz (ch.80), then, Fc = 564 x 1.05 = 594 MHz (ch.86).
* click Freq. Chart for channel frequencies
