Single Channel Eliminator Graphs:

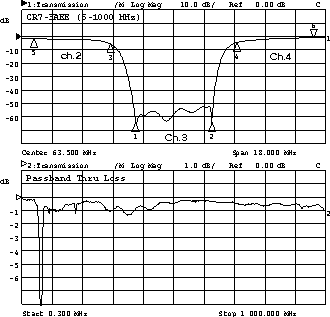

Graphs: CR7-3AE - bandstop and passband frequency response
- Adjacent channel selectivity
- Filter removes CATV ch 3 for reuse
- Stopband: > 50 dB (Mkr 1 & 2)
- Passband loss: <1.5 dB, see graph
- Passband Ripple <1dB
- Pass all other channels, including adjacent
- Adjacent carriers loss: see Mkr 3 & 4
- Bandwidth: DC to 1000 MHz
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 61.250 | -62.34 | 3 pix |
| 2 | 65.750 | -67.61 | 3 snd |
| 3 | 59.750 | -5.60 | 2 snd |
| 4 | 67.250 | -4.75 | 4 pix |
| 5 | 55.250 | -1.65 | 2 pix |
| 6 | 71.750 | -1.03 | 4 snd |
Pix = Picture, Snd = Sound
Order Info: model CR7E-Ch.(#)
Specify channel 3 or 4
Passband Bandwidth DC to 750 MHz

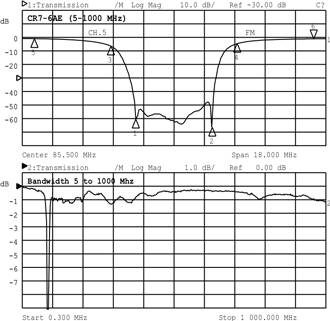

Model CR7-6AE (5 to 1000 MHz) - Adjacent Friendly Channel 6 Deletion Filter
Adjacent friendly bandstop - removes analog ch.6 for reuse. Keeps ch.5 and FM (89-1008 MHz).
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 83.250 | -60.450 | 6 pix |
| 2 | 87.750 | -66.385 | 6 snd |
| 3 | 81.750 | -6.402 | 5 snd |
| 4 | 89.250 | -4.611 | - |
| 5 | 77.250 | -0.945 | 5 pix |
| 6 | 93.750 | -1.047 | - |

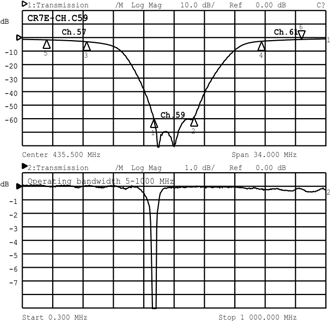

Model CR7E-CH.59 - Hyperband Deletion Filter (Semi-adjacent - for lobby camera)
Semi-adjacent bandstop - removes analog ch.59 for lobby camera. Passes all signals except 58 and 60.
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 433.250 | -60.201 | 59 pix |
| 2 | 437.750 | -58.976 | 59 snd |
| 3 | 425.750 | -3.098 | 57 snd |
| 4 | 445.250 | -2.779 | 61 pix |
| 5 | 421.250 | -1.703 | 57 pix |
| 6 | 449.750 | -1.436 | 61 snd |

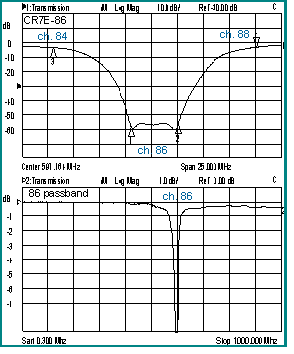

Model CR7E-CH.86 - bandstop and passband frequency response
- Filter removes CATV ch 86 for reuse
- Typical frequency response for all chs
- Stopband loss: > 50 dB (Mkr 1 & 2)
- Passband loss: <1 dB ( Ripple <1dB )
- Pass all other channels, except adjacent
- Semi-Adj carriers loss: < 4dB (Mkr 3 & 4)
- Bandwidth: DC-750 MHz standard
- DC-1000 MHz - hyperband channels - inquire
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 595.250 | -58.84 | 86 pix |
| 2 | 599.750 | -56.90 | 86 snd |
| 3 | 587.750 | -3.70 | 84 snd |
| 4 | 607.250 | -3.38 | 88 pix |
Pix = Picture, Snd = Sound
Order Info: Model CR7E-Ch.(#)
Specify one channel (#) (2 to 116 CATV, 14 to 69 UHF)
Standard Bandwidth DC to 750 MHz (1000 MHz - inquire)
