CE7 - Single Channel Elimination Filter:
Graphs and Specifications

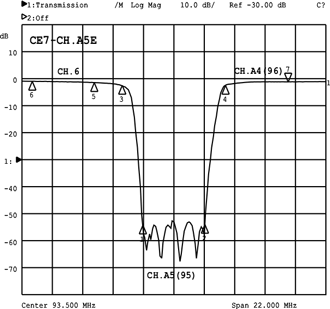

Graph: CE7-Ch.A5E
CE7-Ch.A5E
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 91.250 | -54.331 | A5(95) pix |
| 2 | 95.750 | -54.084 | A5(95) snd |
| 3 | 89.750 | -2.818 | - |
| 4 | 97.250 | -2.794 | A4(96) pix |
| 5 | 87.750 | -1.654 | 6 snd |
| 6 | 83.250 | -1.169 | 6 pix |
| 7 | 101.750 | -1.461 | A4(96) snd |
Pix = Picture, Snd = Sound

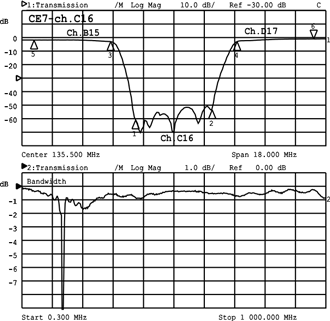

Graph: CE7-Ch.C16
CE7-Ch.C16
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 133.250 | -60.832 | 16 pix |
| 2 | 137.750 | -53.744 | 16 snd |
| 3 | 131.750 | -2.978 | 15 snd |
| 4 | 139.250 | -2.992 | 17 pix |
| 5 | 127.250 | -1.824 | 15 pix |
| 6 | 143.750 | -1.003 | 17 snd |
Pix = Picture, Snd = Sound

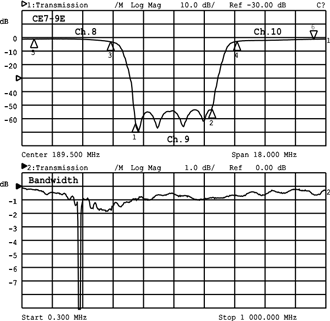

Graph: CE7-9E
CE7-9E
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 187.250 | -63.652 | 9 pix |
| 2 | 191.750 | -53.133 | 9 snd |
| 3 | 185.750 | -3.080 | 8 snd |
| 4 | 193.250 | -2.872 | 10 pix |
| 5 | 181.250 | -1.122 | 8 pix |
| 6 | 197.750 | -1.256 | 10 snd |
Pix = Picture, Snd = Sound

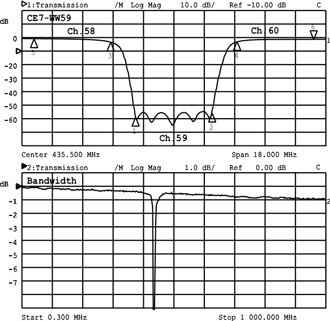

Graph: CE7-WW59
CE7-WW59
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 433.250 | -58.970 | 59(WW) pix |
| 2 | 437.750 | -56.137 | 59(WW) snd |
| 3 | 431.750 | -3.432 | 58(VV) snd |
| 4 | 439.250 | -3.012 | 60(XX) pix |
| 5 | 427.250 | -0.821 | 58(VV) pix |
| 6 | 443.750 | -1.323 | 60(XX) snd |
Pix = Picture, Snd = Sound

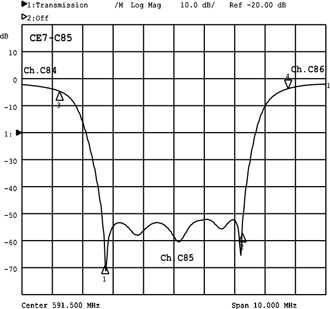

Graph: CE7-C85
CE7-C85
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 589.250 | -68.946 | 85 pix |
| 2 | 593.750 | -57.135 | 85 snd |
| 3 | 587.750 | -4.706 | 84 snd |
| 4 | 595.250 | -3.783 | 86 pix |
Pix = Picture, Snd = Sound
Graph: CE7-C125E
CE7-C85
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 799.250 | -57.907 | 125 pix |
| 2 | 803.750 | -54.656 | 125 snd |
| 3 | 797.750 | -5.949 | 124 snd |
| 4 | 805.250 | -5.663 | 126 pix |
| 5 | 793.250 | -1.620 | 124 pix |
| 6 | 809.750 | -2.821 | 126 snd |
Pix = Picture, Snd = Sound
