Graph: BR7-LP LQ - Semi-Adjacent Lowpass

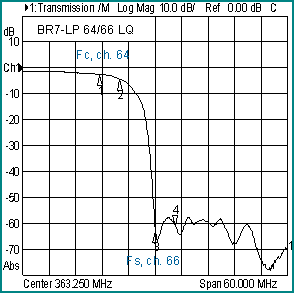

Graph: BR7-LP ch. 64/66 LQ frequency response
- Pass frequencies from DC to ch.64, and remove ch. 66 and above
- Stopband: > 50dB from 463.25 to 1000 MHz
- Insert new content starting at 463.25 MHz
- Passband loss: 1.5dB (except near Fc, see Mkr 1 & 2)
- Transition: approx. 8 MHz separates passband at Fc and stopband at F
Graph: BR7-LP ch. 64/66 LQ frequency response
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 451.250 | -2.50 | 64 Pix |
| 2 Fc1 | 445.750 | -3.75 | 64 Snd |
| 3 Fs1 | 463.250 | -62.94 | 66 Pix |
| 4 | 467.750 | -60.74 | 66 Snd |
Pix = Picture, Snd = Sound
Graph: BR7-LP ch.103/105 LQ frequency response
- Pass frequencies from DC to ch.103, and remove ch. 105 and above
- Stopband: > 50dB from 679.25 to 1000 MHz
- Insert new content starting at 679.25 MHz
- Passband loss: 1.5dB (except Fc, see Mkr 1 & 2)
- Transition: approx. 8 MHz separates passband at Fc and stopband at Fs
Graph: BR7-LP ch.103/105 LQ frequency response
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 667.250 | -3.85 | 103 pix |
| 2 Fc | 671.750 | -4.78 | 103 snd |
| 3 Fs | 679.250 | -55.88 | 105 pix |
| 4 | 683.750 | -54.91 | 105 snd |
Pix = Picture, Snd = Sound
Order Info: model BR7-LP ch.(Fc/Fs) LQ
Specify: Fc and Fs*
Example: BR7-LP ch.64/66 LQ, or BR7-LP 467.75/475.25 LQ
* Fc = Cut-off (channel or frequency). Fs = minimum one channel (or 8 MHz) above Fc.
