Graph: BR7-HP LQ : Semi-Adjacent Highpass
Graph 1: BR7-HP 222 / 228 LQ (> 50 dB stopband)
- Highpass removes segment of CATV spectrum below ch.23 (0 to 222 MHz), and passes upper segment above ch.25 (228 to 650 MHz)
- Transition: Fc and Fs separated by 6 MHz
- Passband loss at Fc is < 4 dB typical
- Stopband: > 55 dB typical
- Option 750 MHz or 1000 MHz passband available for some models - inquire
Graph: BR7-HP 222 / 228 LQ
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 222.000 (Fs) | -65.32 | 23 |
| 2 | 228.000 | -3.36 | 25 |
| 3 | 240.000 | -2.22 | - |
Graph 2: BR7-HP ch. 77/79 LQ ( > 50 dB stopband )
- Highpass removes segment of CATV spectrum below ch.77( 0 to 543.75 MHz), and passes upper segment above ch.79 (555.25 to 1 GHz)
- Transition: Fc and Fs separated by 8 MHz
- Passband loss at Fc is < 4 dB (typical)
- Stopband: > 55 dB (typical)
- Option 1000 MHz passband available for most models - inquire

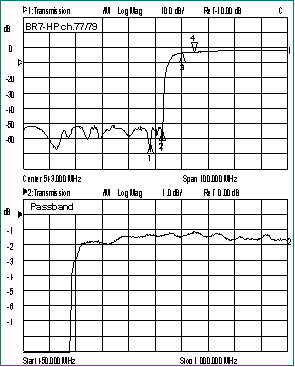

Graph: BR7-HP ch. 77/79 LQ
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 | 541.250 | -62.82 | 77 pix |
| 2 | 545.750 (Fs) | -55.68 | 77 snd |
| 3 | 553.250 (Fc) | -3.47 | 79 pix |
| 4 | 557.750 | -2.99 | 79 snd |
Order Info: model BR7-HP ch.(Fs/Fc) LQ
Specify: Fs/Fc (channel or frequency*)
Example: BR7-HP ch.77/79 LQ or BR7-HP 543.75/228 LQ
* Minimum one channel (8 MHz) transition between Fc and Fs.
