Graphs: CE7W & BR7W - Multi-Channel Elimination Filter Networks

Graph 1: Channels A5(95)-A1(99) Deletion Filter
Graph 2: Wide Adjacent Hyperband Bandstop (50 MHz stopband)
Graph 3: Channels 58-67 Hyperband Deletion Filter
Graph 4: Ultra-Wide Adjacent Bandstop (100 MHz stopband)
Graph 5: Wide Adjacent Mid-Band Bandstop (40 MHz Stopband)
Graph 6: Non-Adjoining Adjacent Hyperband Bandstop Network
Graph 7: Semi-Adjacent CATV Low Band Bandstop

Return to Multi-Channel Eliminators

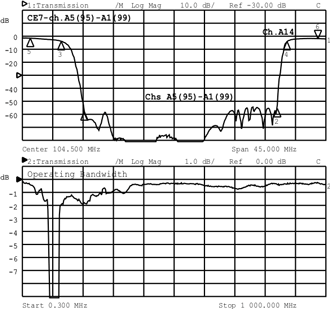

Graph 1: Channels A5(95)-A1(99) Deletion Filter

CE7-ch.A5(95)-A1(99): Channels 95-99,are located between the CATV FM band and mid-band. They can be deleted for reuse without sacrificing regular programs.

Back to the top

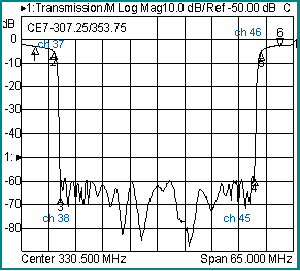

Graph 2: Wide Hyperband Adjacent Bandstop (50 MHz stopband)

CE7W-Ch. 38/45: wide stopband removes eight TV channels - 38 thru
45 (Mkr 3 to 4).

• Stopband > 55 dB
• Adjacent carrier loss is <3.5 dB (ref to passband level)
• Low impact on chs 37 & 46 (Mkr 2 & 5)
• Passband is 5 to 750 MHz
• Passband loss: 2 dB, Ripple: 1 dB
• Panel size for bandstop ( 8 to 10 chs) is 5.25" x 19"

Back to the top

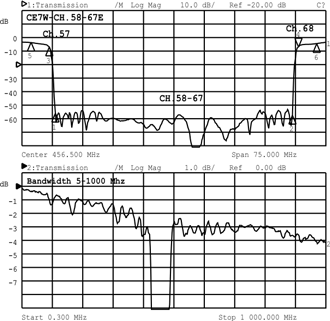

Graph 3: Channels 58-67 Hyperband Deletion Filter

CE7-CH.58/67E: Channels 58/67 are deleted for reuse.

Back to the top

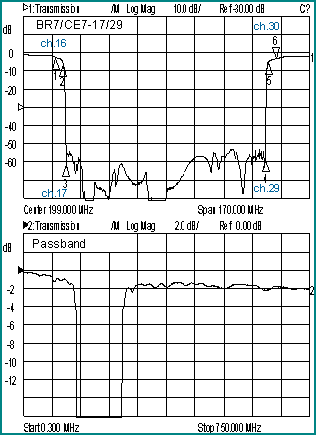

Graph 4: Ultra-Wide Adjacent Bandstop (100 MHz stopband)

BR7/CE7W-Ch.17/29: wide stopband removes channels 17 thru 29
(Mkr 3 & 4)

• This filter passes all other channels including adjacent channels 16 and 30
• Stopband is greater than 50 dB
• Passband optimized for low loss: 2dB, DC to 750 MHz
• This filter network consists of "brickwall" lowpass, highpass, and low loss diplexer
• Panel size for this filter is 7" x 19 "

Back to the top

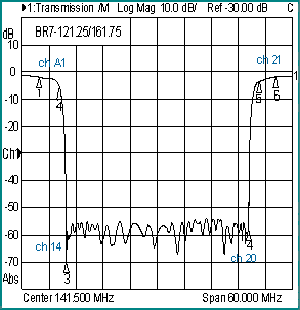

Graph 5: Wide Mid-Band Adjacent Bandstop (40 MHz Stopband)

BR7W-ch. A14/G20 - stopband removes midband channels 14 thru 20 (Mkr 3 & 4)

• This filter passes all other channels including adjacent A1 and H21 (Mkr 2, 5)
• Passband: DC to 750 MHz, loss 2.5dB
• This filter network consists of BR7/CE7 series - adjacent and non-adjacent bandstops
• Panel Size: 7" x 19 "

Back to the top

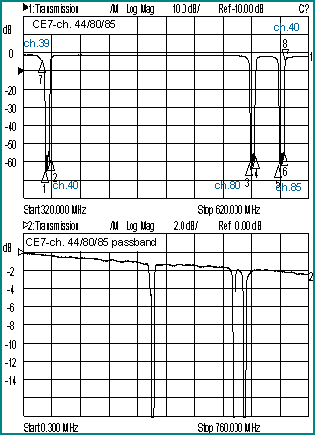

Graph 6: Non-Adjoining Hyperband Adjacent Bandstop Network

CE7-DN ch.44/80/85: stopband & passband frequency response

• Filter network removes 3 discrete channels: 44, 80, and 85, and pass all other channels
• Low impact on adjacents (Mkr 7 & 8)
• Passband loss is 2dB ± .5 dB
• Passband is optimized for best results
• Filter network includes three single channel elimination filters (CE7)
• Panel size of filter: 5.25" x 19"

Back to the top

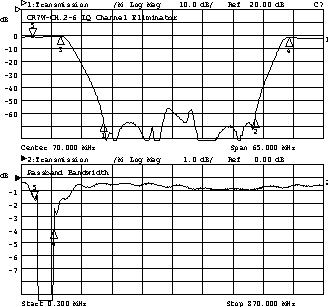

Graph 7: Semi-Adjacent Ch.2 thru 6 Bandstop

CR7-2-6 LQ: stopband & passband frequency response

• Filter removes 2 thru 6.
• Pass return path, all other channels from 94 to 870 MHz
• Passband loss is <2dB ± .5 dB
