Graphs: Wide-Frequency Bandpass: BP7-CEW

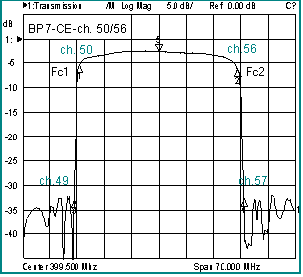

Graph: BP7-CEW-ch.50/56
- Graph depicts wide bandpass, which passes chs 50 to 56, with adjacent skirts
- Passband loss: < 3 to 4 dB
- Band edge loss: see Mkr 1& 2 (Fc1 & Fc2)
- Rejects adjacent chs 49 & 57 (Mkr 3 & 4)
- Adjacent channel rejection: > 30 dB
- Stopband:> 40 dB ±10 MHz from cutoffs
Graph: BP7-CEW-ch.50/56
| Mkr | Freq (MHz) | Attn (dB) | Channel |
| 1 Fc1 | 379.250 | -5.415 | 50 pix |
| 2 Fc2 | 419.750 | -6.372 | 56 snd |
| 3 | 377.750 | -33.107 | 49 snd |
| 4 | 421.250 | -32.545 | 57 pix |
| 5 | 399.500 | -2.955 | 53 |
Pix = Picture Snd = Sound
Order Info: ask for model BP7- CEW Ch.(Fc1/Fc2) (50 dB)
Specify: Fc1/Fc2
Fc1 = Lower cut-off (channel or frequency), Fc2 = Upper cut-off (channel or frequency)
Option: 50 dB stopband suffix (50 dB) to model number
